HIGH TEMPERATURE PUMPS

Dean Pump® is recognized worldwide for high quality industrial process pumps. These pumps are manufactured in a variety of metals to handle a broad range of high temperature and chemical process applications.

Thermal Liquid/Hot Oil/ Water

Capacities to 1,100 GPM (250 m3/hr)

Heads to 425 feet (130 m)

Pumping temperatures to 650°F (343° C)

Working pressures to 350 PSIG (2,413 kPa)

Horizontal, end suction, back pull-out design

Centerline supported casing

300 lb. RF flanges

pH Series Horizontal ANSI Process

Capacities to 3,200 GPM (726 m3/hr)

Heads to 800 feet (245 m)

Pumping temperatures to 500°F (260°C)

Working pressures to 375 PSIG (2,585 kPa)

Integral one-piece casing flanges

Fully open impeller

Heavy duty shaft and bearings

External impeller adjustment

Magnetic Drive ANSI Process

Capacities to 1200 GPM (270 m3/hr)

Heads to 475 feet (145 m)

Pumping temperatures to 350°F (177° C)

Working pressures to 275 PSIG (1,896 kPa)

Discharge-to discharge circulation

Silicon carbide bearings

Samarium cobalt rare earth magnets

Hastelloy-C containment shell

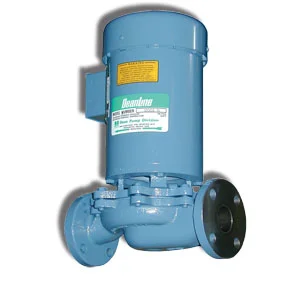

Vertical Inline

Capacities to 95 GPM (22 m3/hr)

Heads to 130 feet (39 m)

Pumping temperatures to 220°F (104°C)

Working pressures to 100 PSIG (689 kPa)

Space saving design

Open impeller with integral seal

Single and three phase motors
